Installation kits
Two variants of installation sets of complexes are offered:
Installation kit KIT006

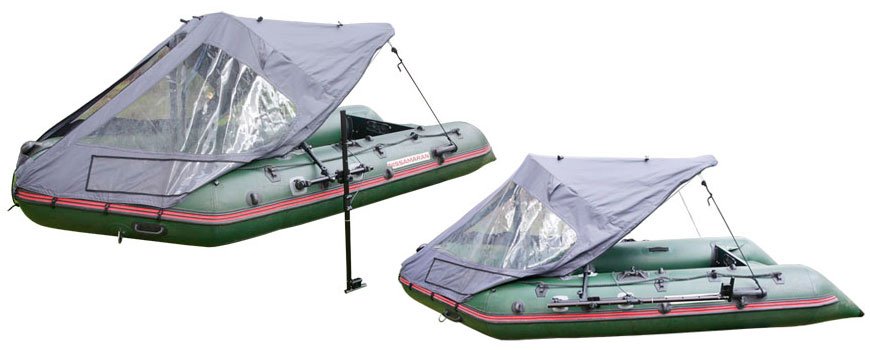

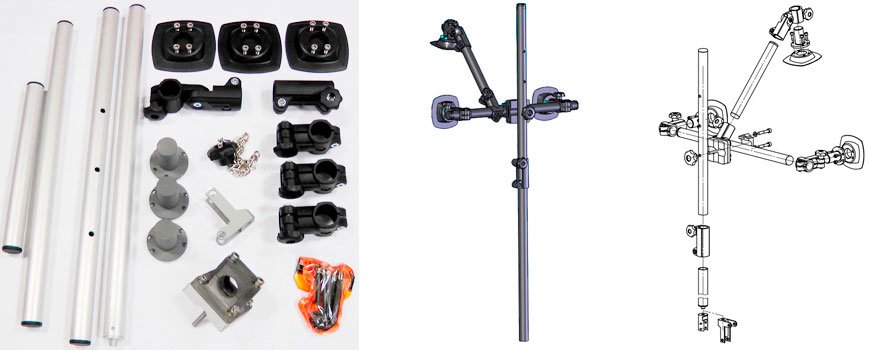

Mobile (removable) or stationary mounting of the Hydra™ series sonar and other elements of the complex in a marching or working position on Board an inflatable boat. Installation kit KIT 006 is designed for mobile (removable) or stationary mounting of the sonar series Hydra° and other elements of the complex in marching or working position from one of the sides of the inflatable boat.

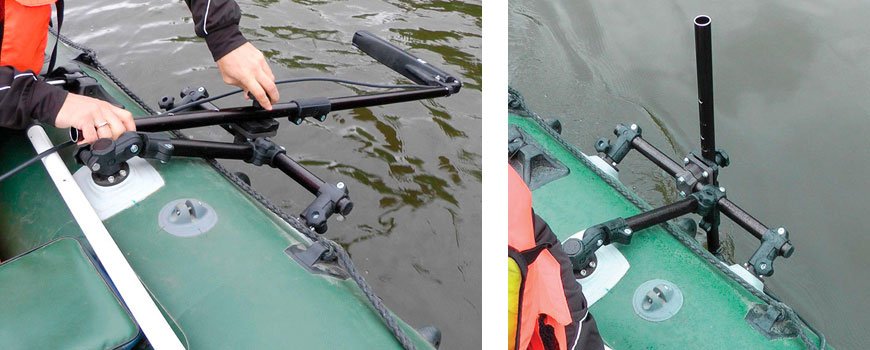

The rod allows you to set the required immersion depth of the locator . The kit can be used on almost any inflatable PVC boats.
The navigation receiver antenna can be installed at the top of the rod (via a separate adapter).
| Characteristics | The diameter of the cylinder of the boat, m: 0,3..0.8 Cross section of the rod, mm: d=30 (wall thickness 2 mm) Material: aluminum, plastic, PVC Dimensions, mm: 100x100x650 (unassembled) Weight, kg, not more than: 1.5 Rod length, m: from 1.1 to 2 (specified when ordering) Ability to install the navigation receiver antenna: Yes |
||||||
| Options | Given in the specification | ||||||
| Additionally | Navigation receiver mount adapter Adapter for sonar mounting |
||||||
| Compatibility | All versions of models H4LM3, H4M7, H5s7, H5sf7, H5s(e)3 | ||||||
| Order code, delivery set | Given in the specification. NOTICE. The glue for gluing the rims is not included in the package |
||||||
| Status | Serial production | ||||||
| Documentation |
|

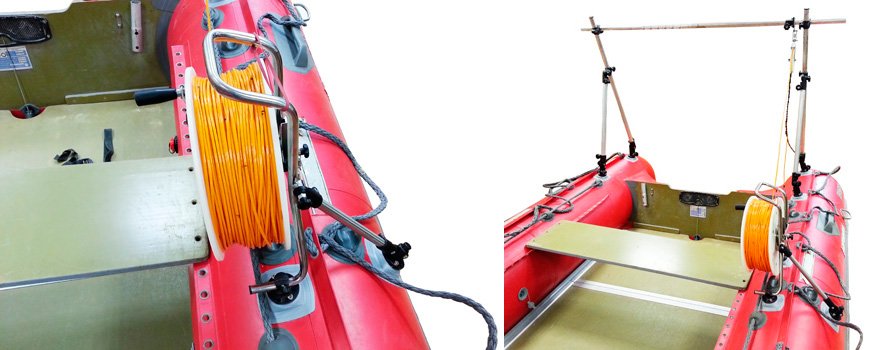

Designed for fastening the winch on Board of an inflatable boat and pulling the cable rope when towing the sonar of Hydra™series.

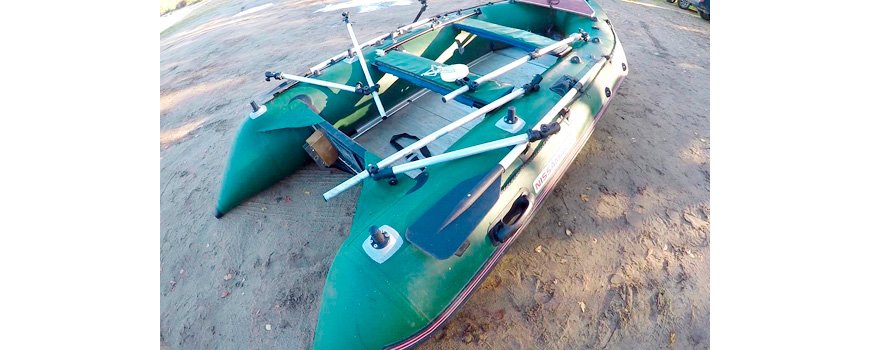

The kit is installed on the balloons of the boat using seven PVC mounting pads glued to the balloon of the boat.
The kit is supplied as part of a towed side scan sonar kit or separately.

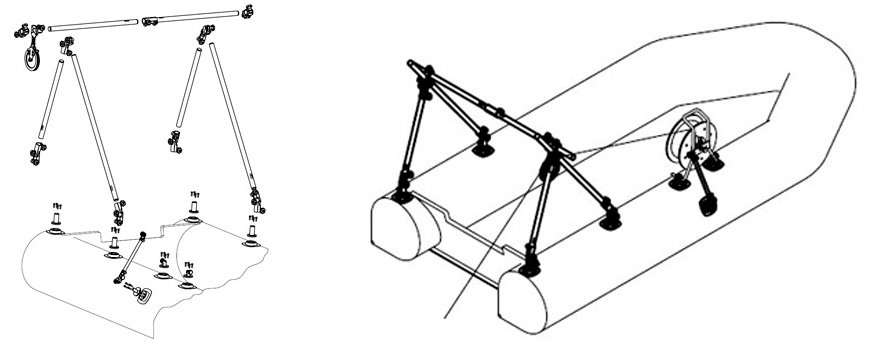

The kit contains a collapsible frame with a towing unit and a winch mount.
| Specification of KIT008 |
|||
| Compatibility | |||
| Sonars of Hydra™ series | H5st7 | ||
| A boat | inflatable boat with a length of 3.5 m and a balloon diameter of 38-50 cm | ||
| Winch | IVYUT.304331.002 | ||
| Delivery set | |||
| Attachment | Disassembled | ||
| Incoming accessories | Case for transportation and storage | ||
| Documentation | Installation instructions, label | ||
| Additional accessories, equipment (sold separately) | |||
| Adapters |
|
||
| Glue | Adhesive for gluing mounting pads | ||
| Main parameters | |||
| Kit weight, kg | 4 | ||
| Dimensions of the transport case, mm | 1020Х200Х140 | ||
| Operation conditions | |||
| Shooting speed, knots | up to 10 | ||
| Temperature | -15..+50°С (operational) +5..+40°С (storage) |
||
| Documentation |
|
||
KIT012 installation kit

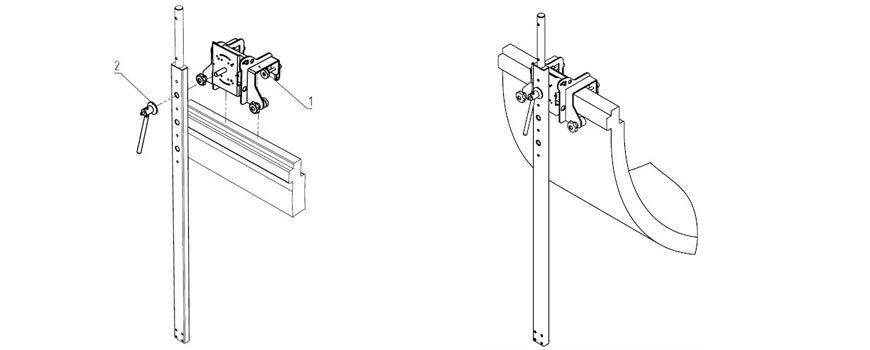

Set of installation KIT012 (the kit) is designed for mobile (removable) or fixed mounting of sonar series Hydra™, and other elements of the complex in the stowed or working position from one side of the boat type Yal-6 (next boat) or a similar vessel by means of rod 50х25мм from a set of installation KIT011 or similar.
|
Brief specification KIT012 |
|||||
|
Compatibility |
|||||
|
Side-scan sonars Hydra™ |
All models of sonar series Гидра5 |
||||
|
Boat |
The Boat Is Yawl-6 |
||||
|
The package |
|||||
|
Completeness |
Set Assembly |
||||
|
Documentation |
Installation manual, label |
||||
|
The main parameters |
|||||
|
Mass of set, kg |
2,8 |
||||
|
Dimensions, mm |
275х214х190 |
||||
|
Thread axis bracket |
M14 |
||||
|
Maximum working weight of attached equipment, kg, not more |
15 |
||||
|
The cross section of the rod, mm |
50х25 |
||||
|
Material set |
stainless steel |
||||
|
Working conditions |
|||||
|
Shooting speed, knots |
to 10 |
||||
|
Temperature |
-10..+50°C (operating) |
||||
|
Documentation |
|
||||
