H5s7E is a side-scan sonar (SSS)

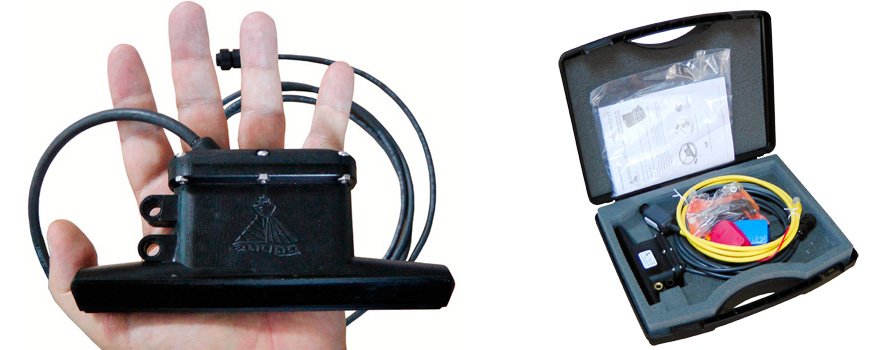

H5s7E is ultra-high resolution ultra-compact side-scan sonar (SSS) of on-Board placement. Designed for a wide range of users.
An effective side scan method is used to search for objects on large areas, which allows to reduce the time of work and material costs.

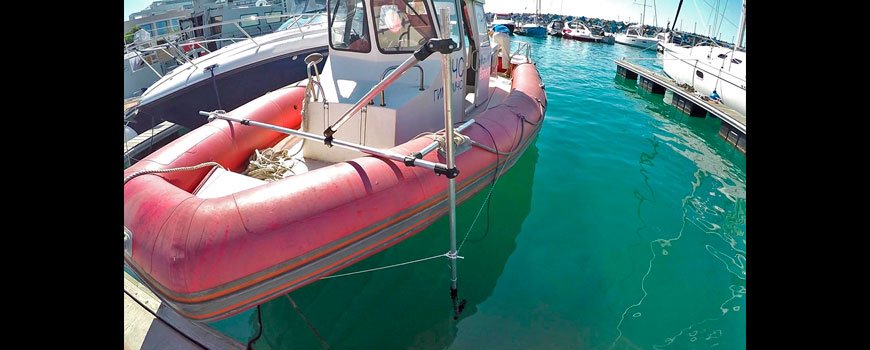

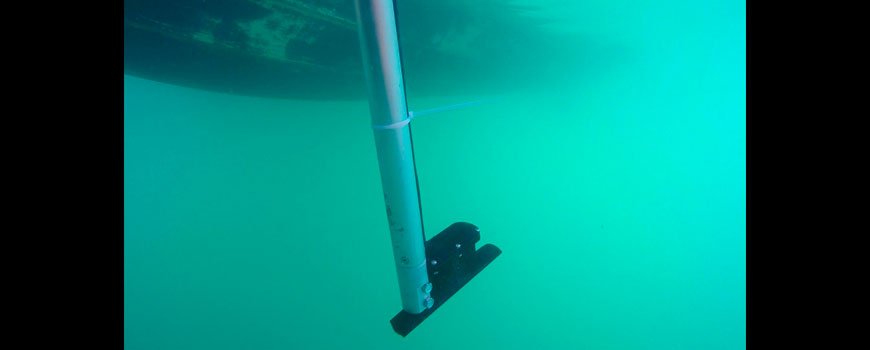

Small-sized narrow-profile design of the SSS allows you to place it on board of any vessel on a rod with a cross section of 20x40mm with minimal immersion The special way of fastening on a rod allows to protect SSS from blow and to reduce risk of its breakage.

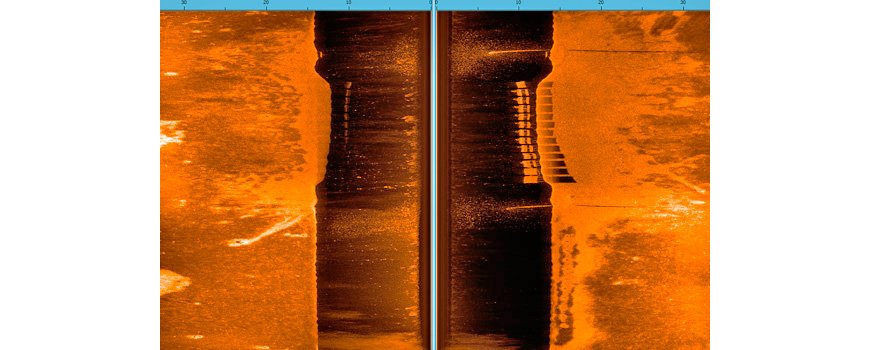

Ultra-high range resolution (1 cm) for object search and target detection. SSS provides real - time high-quality bottom image with photographic quality in a swath of up to 230m , using a frequency of 700 kHz.The small size and weight allow you to transport SSS in a backpack or a small case. Simple installation, using materials at hand or quick-release mount, ensures work on any vessel.

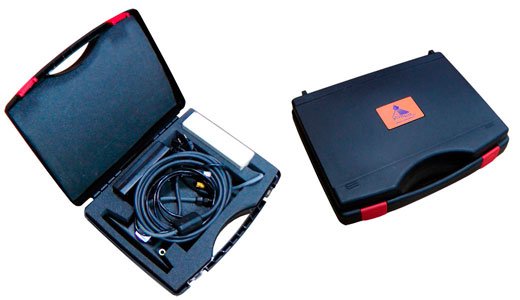

An additional set of accessories allows you to place the SSS and all additional equipment in one case.

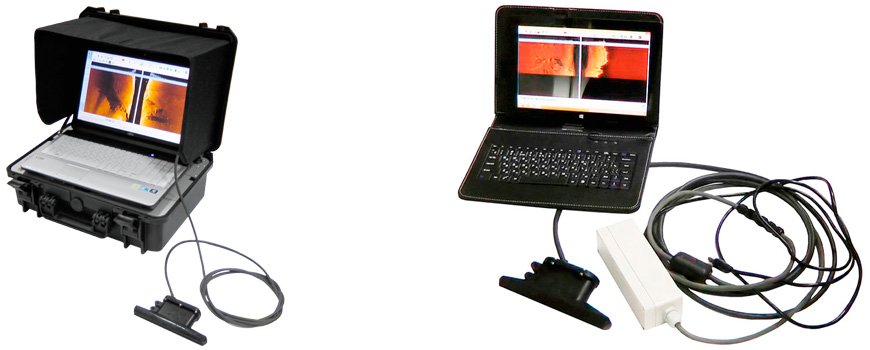

The SSS connects to a PC compatible computer with Microsoft ® Windows ® Operating System via an Ethernet port. The HyScan program, included in the delivery set, provides real-time scanning and viewing of data, recording and subsequent playback, measurement of object parameters.
Fields of application:
- bottom survey observation, identification of relief features, various inhomogeneities, swath survey of water areas
- search for objects at the bottom and in the water column
- engineering and ecological monitoring
Features:
- easy to transport and store – all sonar fits in a small case
- wide swath of view (up to 230 m) and high quality of images
- low power consumption
- automatic adjustment to shooting conditions
Similiar models: Complex side scan sonar H5sf7
|
System specification |
||
|
The composition of the basic set |
Monoblock H5s7E |
Combined electronics unit and antennas, Ethernet interface |
|
Built-in sensors of the course, roll, pitch (option) |
an accuracy of 0.2° (roll, pitch) |
|
|
Software (SW) |
Program shooting HyScan base (Windows) |
|
|
Documentation |
Manual, operator's manual, quick guide |
|
|
Included accessories |
Mounting kit for attaching to the rod; |
|
|
Additional accessories and equipment (sold separately) |
Cables |
Extension cords, adapters |
|
Food |
Batteries; |
|
|
Sensors |
The navigation receiver; |
|
|
Mount |

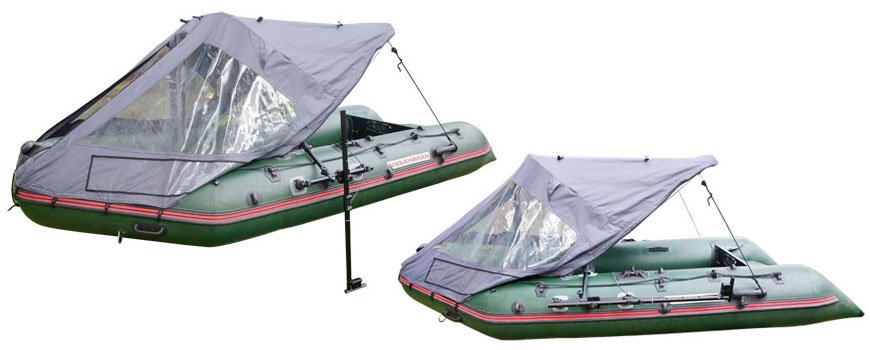

Set of installation for small vessel (inflatable or hard shell) |
|
|
Integration |
Mobile accessories kit SSS |
|
|
Computer |
PC compatible computer (laptop) |
|
|
Program |
Navigation, navigation, secondary processing |
|
|
Specification of monoblock H5s7E |
||
|
Acoustics |
Operating frequency |
540-840 kHz |
|
Resolution |
1 cm (in slant range) |
|
|
Range, span |
up to 120 m on each side, the total span of up to 230 m |
|
|
The recommended range of investigated depths |
1..20 m (recommended), max. up to 40 m |
|
|
The radiation mode |
Tone, chirp (CHIRP) |
|
|
Antenna |
Chart |
50° (vertical), 0.7° (horizontal) |
|
Built-in sensors (optional) |
Course, roll, pitch |
an accuracy of 0.2° (roll, pitch) |
|
Design |
Case |
High-impact molded plastic, cover antennas – polyurethane. |
|
Cable |
Hybrid cable d=7mm |
|
|
Mount |
Two holes d=7 mm |
|
|
The installation location |
rod dimensions: 20x40 mm |
|
|
Penetration at work |
up to 3 m |
|
|
Food |
Voltage |
=8..17V |
|
Consumption |
1 W in stop mode |
|
|
Interface |
Food |
Different tips to connect |
|
Data |
Ethernet plug RJ-45 |
|
|
Weight |
In the air (fresh water) |
400 g with cable L=4m (150 g) |
|
Dimensions |
Monobloc (without cable) |
173x72x38 mm (LxHxW) |
|
Working conditions |
Operating temperature |
-10..+40°C |
|
Storage |
-40..+50°C |
|
|
The speed of movement when shooting |
Up to 10 knots |
|
|
The excitement |
To 3 points |
|
 SSS H5s7. Short description (tb00006) Size: 1.69 MB |
| SSS H5s7. Specification (sp00045) Size: 2.99 MB |
| SSS H5s7. Quick guide Size: 1.59 MB |
| SSS H5s7. User manual (IVUT.460459.008 RE) Size: 7.8 MB |
HyScan software – program survey and primary data processing, used for SSS, is part of the basic package. You can download the program via Download center
Additional information: Documentation
The complex comes in various configurations. Recommendations on the choice of configuration are described in the specification.
Basic kit contains:
-
AIO hybrid all-in-one cable and a splitter
-
Mounting kit (for attaching a candy bar to the bar 40x20 mm)
-
CD “the Complex sonar Hydra
-
FOR the basic set - recording program HyScan base (disk)
-
The manual (on disk), quick start guide, passport
-
Plastic case
NOTE. Cable lengths specified in the order. Possible cable lengths given in the specifications.
The minimum set of components for the functioning of the SSS:
-
Computer (laptop) with installed software base kit
-
A battery to supply LPG and computer
-
Installation kit (fastening elements)
The expansion kit includes additional subsystems and accessories, which enable you to arrange meals, monitoring of results, to adapt the complex to vessels of different type and displacement, etc. it is Possible to purchase additional subsystems and accessories separately or include them in the package.
